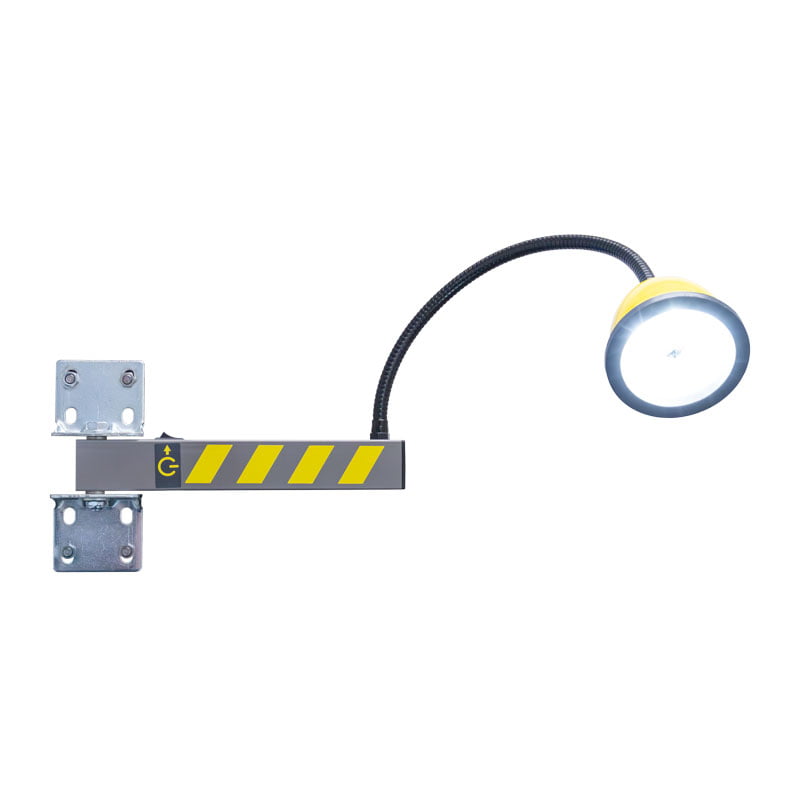

DL2GN Gooseneck Industrial Task Light

Part of the innovative DL2 Series, the DL2GN Gooseneck is designed to resist sag while providing unrivaled flexibility and light quality compared to traditional models.

The DL2GN Gooseneck features “set and forget” positioning, allowing operators to set the model to their optimal position and leave it without obstructing forklifts or the door. Its engineering resists sag by utilizing gravity as an ally. The flexible neck is mounted to the swing arm’s top, harnessing gravity’s pull to support the neck. Movement is transferred to a base hinge, significantly reducing friction caused by repetitive movement and repositioning. By using a stage one adjustable bar, Tri Lite reduced the size, length, and weight of the flexible neck, preventing sag over time. The model also includes a US-made high-impact polycarbonate head with optimized internal LED, further reducing weight compared to PAR38 lamps and metal heads.

The DL2GN Gooseneck provides optimal lighting for illuminating a 53′ trailer. Tri Lite uses the same light engine for the entire DL2 family, ensuring consistent high-quality features like CRI, color temperature, beam angle, and maximum-minimum ratios for all DL2 Series loading dock lights.

Partner the DL2GN with our DL2IL to create the best, most versatile form of illumination available on the market.

FEATURES

  • Uses up to 94% less energy than traditional incandescent heads
  • 100,000-hour life expectancy in typical applications (vs. 2,000 hours for typical incandescent lights)
  • Conveniently stores flat against the wall when not in use
  • Safety bumper protects operators from injuries and mitigates damage to the product
  • Universal LED engine across all DL2 products
  • Fixed wattage, eliminates the danger of incandescent lamps being screwed into LED fixtures.
  • 5-year warranty
  • UL and cUL Listed
  • Made in USA
Part Numbers Weight Wattage Power Lumens Beam Angle CRI CCT
DL2GN 7.46 lbs 13.4W 120V, 60Hz 1331 10° ≥ 75 5000K
Name Download
DL2GN Product Sheet Download
DL2GN Installation Instructions Download
Tri Lite Warranty Download

Special Features

Swing Hinge

Swing Hinge Dock Light Arm

“Swing” dock lights feature a hinge that allows both vertical and horizontal adjustment of the arm.

Flex Head

Flex Arm Dock Light
Flex dock lights combine the strength of a standard dock light arm with the added flexibility of an impact absorber that bends the head away when bumped by a moving forklift or dock door.

Heavy Duty

Heavy Duty Dock Light
Heavy duty lamp heads are designed for the most demanding environments including wet and damp locations. Their rugged cast aluminum housing includes a shatterproof polycarbonate lens cover.

Fan

Fan Only Dock Light

Fans can be used separately or in conjunction with many Tri Lite dock light heads. The high capacity 3-speed fan provides air circulation and cooling throughout the trailer. 18″ fan rated for 3000 cfm.

Loading Dock Light Heads

Heavy Duty Lamp Head (HLED)

Heavy Duty Lamp Head (HLED)
Virtually indestructible! The HDLED has a cast aluminum body designed for the most demanding environments including wet and damp locations.

Metal Lamp Head

Metal Lamp Head
Traditional, powder coated metal light head featuring all steel construction for long life.

Polycarbonate Lamp Head

Polycarbonate Lamp Head
Unique, patented polycarbonate head is rugged and economical, it’s our most popular lamp head!

Arm Type

Single Strut Arm

Single Strut Arm

Single Struct arms are an economical lighting solution for low to mid volume loading docks. The arm features a hinge that allows both vertical and horizontal adjustment of the arm.

Double Strut Arm

Double Strut Arm
Dual struts give this arm the strength to survive in the busiest and most demanding warehouses. The dual strut design will also support a fan or light/fan combination.
How to Specify Dome Color
How to Pick Dome Color
